📌 Overview

Ledgr is an end-to-end demand-forecasting and inventory-orchestration platform for FMCG distributors. It pairs a 6-step LightGBM pipeline with a GST-compliant purchase-order workflow, a batch-aware reorder engine, and a RAG chatbot that answers operational questions in natural language — all wrapped in a one-click Dockerized stack.

A salesman scans retail barcodes from an Android scanner in the field, the data syncs to Postgres over the same Wi-Fi, and the dashboard fuses it with 3 years of weekly sales history to predict demand for the next 6 weeks per SKU per outlet.

The reorder engine then translates forecast confidence (MAPE) directly into safety-stock buffers — so when the model is sharp you carry less inventory, and when the model is shaky you carry more. The system pays for itself in working-capital savings.

Originally built around 40 SKUs × 320 outlets across Pune & Nashik (~93K observed weekly sales rows expanded to a ~2M-row reconstructed grid). Architected to scale horizontally to thousands of SKUs and tens of thousands of outlets.

---

🖼️ Screenshots

---

✨ Key Features

🚀 Capability	📋 Description
📈 6-Step LightGBM Pipeline	Data classification → forecast → retrospective → reorder → SKU classifier → executive report — runs Mondays 7:45 AM IST or on-demand
🎯 MAPE-Driven Safety Stock	Per-SKU MAPE drives reorder buffer (0.5wk if MAPE <10%, 2wk if >20%) — accuracy directly determines inventory cost
📱 Android Barcode Scanner	Kotlin + Jetpack Compose + ML Kit, pairs to server via QR code, offline queue with Room DB
🧾 GST-Compliant POs	Auto-routes intrastate (CGST + SGST) vs interstate (IGST) using buyer/supplier state; downloadable PDF invoices with HSN codes
📦 Batch-Aware Inventory	Tracks 103+ batches with expiry dates; flags critical (<14d), warning (14–30d), and excludes expiring stock from "available" before reorder
🎟️ Diwali 2023 Backtest	5-signal stockout detector with no lookahead bias — caught 10 of 14 known historical stockouts
🤖 RAG Chatbot	TF-IDF retrieval over pipeline outputs + Gemini 2.0 Flash; deterministic local fallback if no API key
🏪 Multi-Channel Outlets	320 outlets across Kirana / Supermarket / Medical channels with per-channel performance rollups
📨 Monday Morning Report	Auto-delivered to WhatsApp / Email / Telegram with executive summary, urgent orders, and overstock alerts
🐳 One-Click Stack	./run.sh (Linux/macOS) or .\run.ps1 (Windows) — auto-detects LAN IP, free port, Docker daemon

---

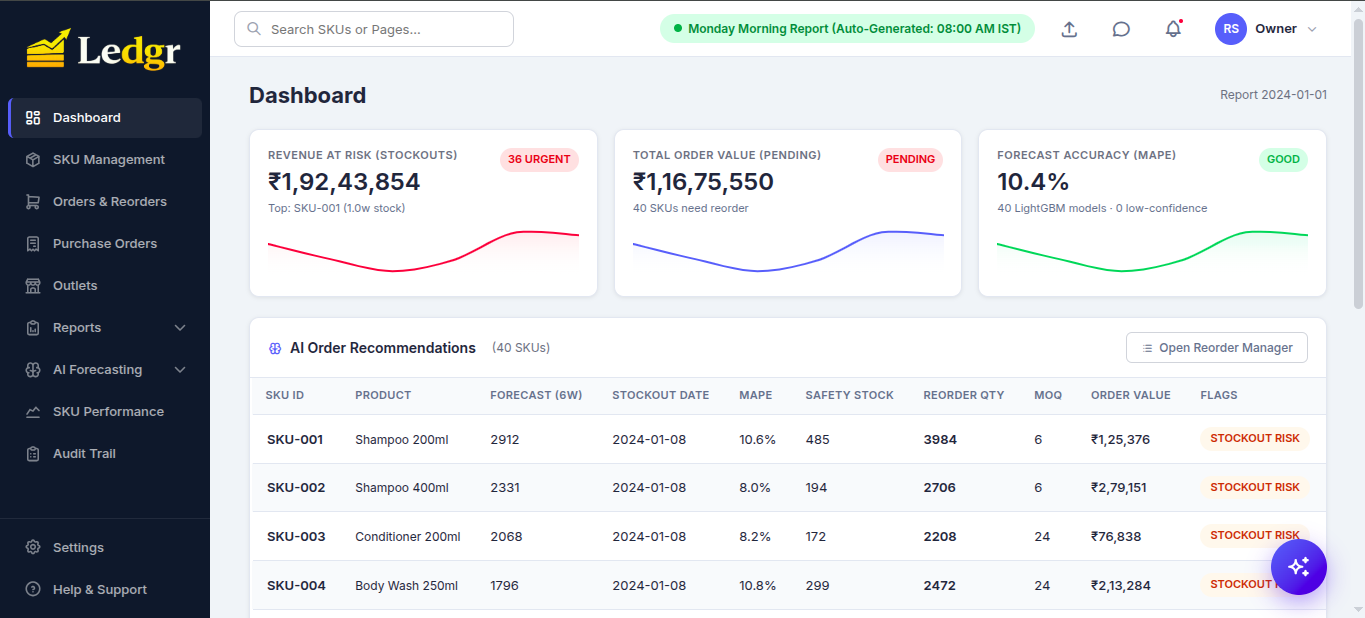

💼 Why Owners Love Ledgr

The dashboard isn't just charts — every screen replaces something a person was doing manually before, every Monday, on a spreadsheet. The features below are the ones distributors actually quote when asked what changed after rollout.

🎯 Forecasts you can trust before you sign the cheque

• Overall MAPE on a real 3-year history: 10.44% — measured on a held-out 8-week window, one LightGBM model per SKU, never aggregated to category.
• Per-SKU confidence band (high / medium / low) shown next to every forecast, so the buyer can override the model on the few SKUs that earned that override.
• New / sparse SKUs (<10 non-zero weeks) auto-fall-back to a rolling-mean baseline rather than producing a confident-looking lie.

🚨 Stockouts caught before they happen

• Diwali 2023 retrospective: 10 of 14 known stockouts identified, 4 false positives — zero lookahead bias. The 5-signal detector (capped surge / demand surge / Diwali 2022 pattern / inventory low / promo overlap) re-runs each year, so next festive season you know exactly which SKUs to overstock.
• Reorder engine uses MAPE-driven dynamic safety stock (0.5× to 2× weekly demand depending on per-SKU forecast accuracy) — high-confidence SKUs no longer carry a wasteful 2-week buffer; low-confidence ones get the cushion they actually need.
• Week-by-week stockout simulation uses batch-aware available stock (skips batches that expire before they could be sold) — so you don't reorder against ghost inventory and you don't write off cases of yoghurt at month-end.

💰 Money out the door, signed in two clicks

• GST-compliant PO PDFs auto-route CGST + SGST for intrastate suppliers and IGST for interstate ones based on the supplier's state vs your store's state — the kind of mistake that costs you a re-do at the auditor's desk.
• HSN codes pre-filled per category. Multi-line POs grouped by supplier so you sign one PDF per vendor, not 40.
• Owner-only "Approve" with a clear pending → approved → in-transit flow + an Audit Trail of who changed what and why.

🌅 Monday morning runs itself

• APScheduler fires at 07:45 IST every Monday: logs last week's forecast vs actuals, retrains the LightGBM models, regenerates safety stock, builds the reorder list, ships it on WhatsApp / Email / Telegram.
• The Monday report bundles four sections owners actually read: executive_summary (one-line health), urgent_orders (today's must-place), overstock_alerts (capital trapped on shelves), expiry_alerts (batches you'd otherwise write off).
• Outlet non-submission detector flags which distributors missed two consecutive weeks before you reorder against blind spots.

📲 Floor staff scan, not type

• Native Android scanner (CameraX + ML Kit, retail barcodes + QR). Pair-by-QR-code, sign in once, scan all day.
• Offline-first: every scan goes into a local Room queue and uploads when Wi-Fi returns. No "lost the count because the office router rebooted."
• One scan = one confirm card. Quantity in, save, done. Replaces the tally-sheet-into-Excel step entirely.

💬 Ask anything, in plain English

• Sparkles button (lower right) opens an LLM chatbot wired to 69 retrieval chunks spanning every dashboard domain: SKU master, outlets, suppliers, batches, POs, pipeline runs, data quality, forecasts, retrospective accuracy, classification.
• Real questions answered without waking an analyst:
  • "Which outlet sold the most last week?" → OL-263 N Mart Aundh Pune, ₹61,212
  • "Show supplier performance and lead times." → 12 vendors, avg 9.0d, P80 12.0d, festive 15.6d
  • "Any batches near expiry?" → 29 critical (<14 days), with SKU IDs and exact days remaining
• TF-IDF retrieval keeps cost bounded as the catalogue grows — token spend doesn't balloon when you add SKU 41 or outlet 321.

🔐 Multi-store, role-aware, audit-ready

• One owner login sees both Pune and Nashik. Manager logins are auto-scoped to their store — they can't approve a PO they shouldn't see in the first place.
• Audit Trail logs every inventory adjustment with user, reason, and timestamp. Compliance-ready for GST audits and internal controls.
• Data Quality firewall (ingestion.py) rejects negative units, unknown SKU/outlet pairs, duplicates, and >15% week-over-week row-count drops — so a corrupted upload doesn't silently poison next week's forecast.

⚡ One command, five minutes, on any laptop

• ./run.sh (or .\run.ps1 on Windows) auto-creates .env, detects your LAN IP for Android pairing, finds a free port if 5000 is taken, and waits until the dashboard is genuinely up before printing the URL.
• First boot ~60 seconds, including the seed and the very first pipeline run. Subsequent boots in ~5 seconds.
• Reset to a clean demo with docker compose down -v — useful before showing a customer.

---

🚀 Quick Start

1️⃣ Prerequisites

	Why	Install
Docker Desktop ≥ 20.10	runs the web + Postgres + scheduler stack	https://docs.docker.com/get-docker/
Git	clone the repo	https://git-scm.com/downloads
(optional) Android Studio	only if rebuilding the scanner APK	https://developer.android.com/studio

A laptop with 4 GB free RAM is enough. The full image is ~600 MB.

2️⃣ Clone & Launch

git clone https://github.com/HoneyBadger-010/Ledgr-Retail-SKU-Management-Tool.git
cd Ledgr-Retail-SKU-Management-Tool

Linux / macOS:

./run.sh

Windows (PowerShell):

.\run.ps1

The launcher does it all — pre-flight checks, .env auto-create, LAN IP detection, port auto-route (5000 → 5001/5050/8000/8080/8888), background boot, and waits for /login to actually answer before printing success.

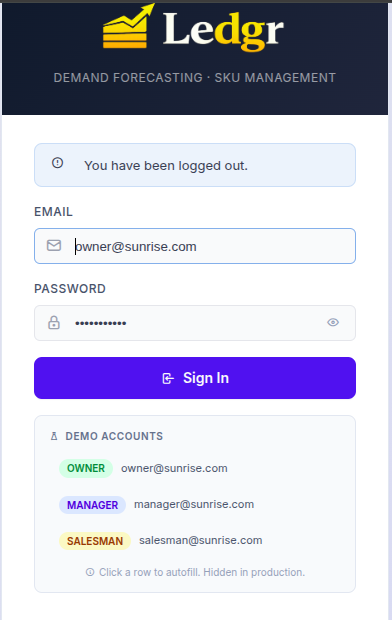

3️⃣ Open & Sign In

Open http://localhost:5000 and use a demo account:

Role	Email	Password	What you see
👑 Owner	owner@sunrise.com	sunrise2024	Everything — incl. PO approval, SKU delete, pipeline trigger
👨‍💼 Manager	manager@sunrise.com	manager2024	Everything except approve/delete
👷 Salesman	salesman@sunrise.com	sales2024	Redirects to mobile barcode-scan PWA

First boot only: ~3–5 minutes (image build + Postgres init + 6-step pipeline). Subsequent boots: ~5 seconds. See SETUP.md for full handoff and troubleshooting.

4️⃣ (Optional) Enable the AI Chatbot

The chatbot has a local keyword fallback that works offline. For full LLM responses (Gemini 2.0 Flash via OpenRouter):

cp .env.example .env
# Edit .env and set OPENROUTER_KEY=sk-or-v1-...   (free tier at https://openrouter.ai/keys)
docker compose restart web

---

🏗️ System Architecture

                                   ┌────────────────────────┐
                                   │  Android Scanner App   │
                                   │  Kotlin + ML Kit       │
                                   │  (offline Room queue)  │
                                   └───────────┬────────────┘
                                               │ HTTP over LAN (QR-paired)
                                               ▼
        ┌──────────────────┐        ┌────────────────────────┐        ┌──────────────────┐
        │  Web Browser     │ ─────► │  Flask + Gunicorn      │ ◄───── │  Mobile PWA      │
        │  (Tabler UI)     │        │  /api/*  /auth         │        │  /mobile/        │
        └──────────────────┘        └───────────┬────────────┘        └──────────────────┘
                                                │
                ┌───────────────────────────────┼───────────────────────────────┐
                ▼                               ▼                               ▼
        ┌──────────────┐              ┌──────────────────┐             ┌──────────────────┐
        │  PostgreSQL  │              │   APScheduler    │             │   RAG Chatbot    │
        │  (15-alpine) │              │   weekly cron    │             │   TF-IDF + LLM   │
        │  + batches   │              │   Mon 7:45 IST   │             │   (Gemini Flash) │
        │  + POs       │              └────────┬─────────┘             └──────────────────┘
        └──────────────┘                       │
                                               ▼
                       ┌────────────────────────────────────────┐
                       │       6-Step LightGBM Pipeline         │
                       │  clean → forecast → retro →            │
                       │  reorder → classify → report           │
                       └────────────────────────────────────────┘
                                               │
                                               ▼
                       ┌────────────────────────────────────────┐
                       │  Monday Report → WhatsApp / Email /    │
                       │                  Telegram              │
                       └────────────────────────────────────────┘

---

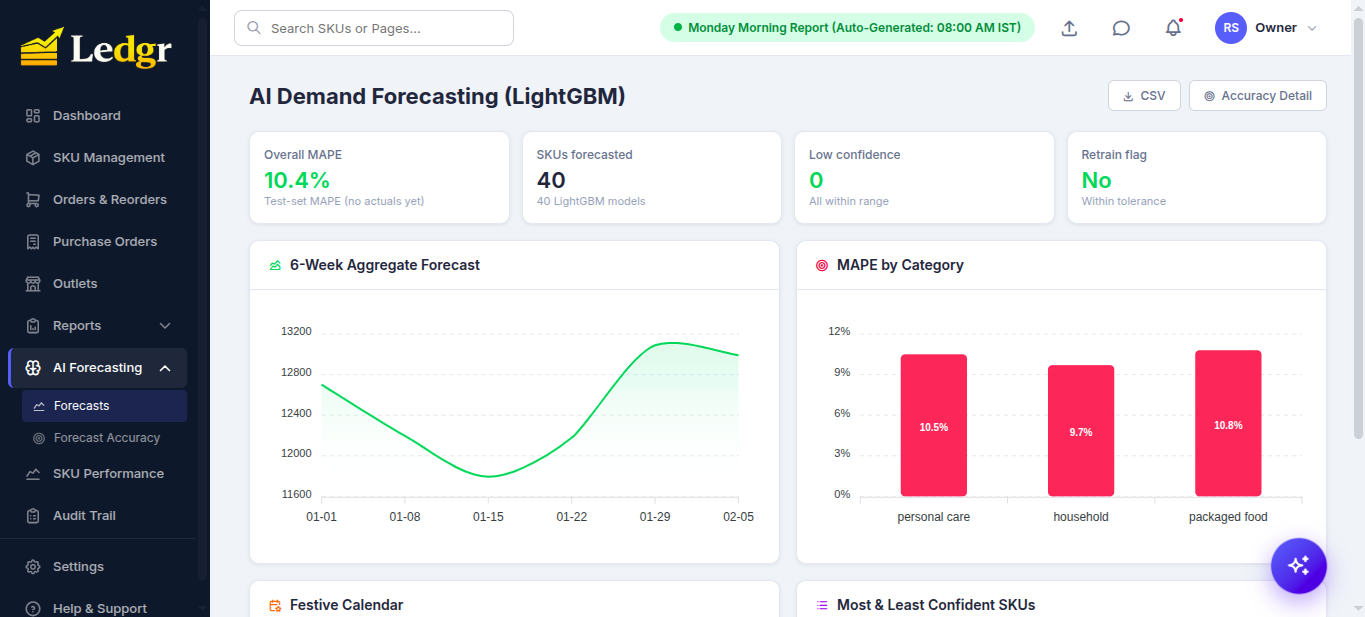

🧠 The 6-Step Pipeline

Step	Script	What it does	Output
1️⃣	1_clean_data.py	Reconstructs full week × SKU × outlet grid; classifies missing rows as true_zero / non_reporting / stockout_gap / uncertain	sales_classified.csv, classification_report.json
2️⃣	2_forecast.py	LightGBM per-SKU, 6-week horizon; computes test-set MAPE	forecasts.csv, forecast_accuracy.json
3️⃣	3_retrospective.py	Diwali 2023 stockout backtest (5 signals, no lookahead)	top_14_stockout_skus.json
4️⃣	4_reorder_engine.py	Batch-aware available stock × MAPE-driven safety stock × week-by-week chronological simulation	reorder_recommendations.csv
5️⃣	5_sku_classifier.py	Movement (fast / slow / seasonal / dead) + ABC tier	sku_classification.csv
6️⃣	6_report_generator.py	Executive summary, urgent orders, overstock + expiry alerts	monday_report.json

---

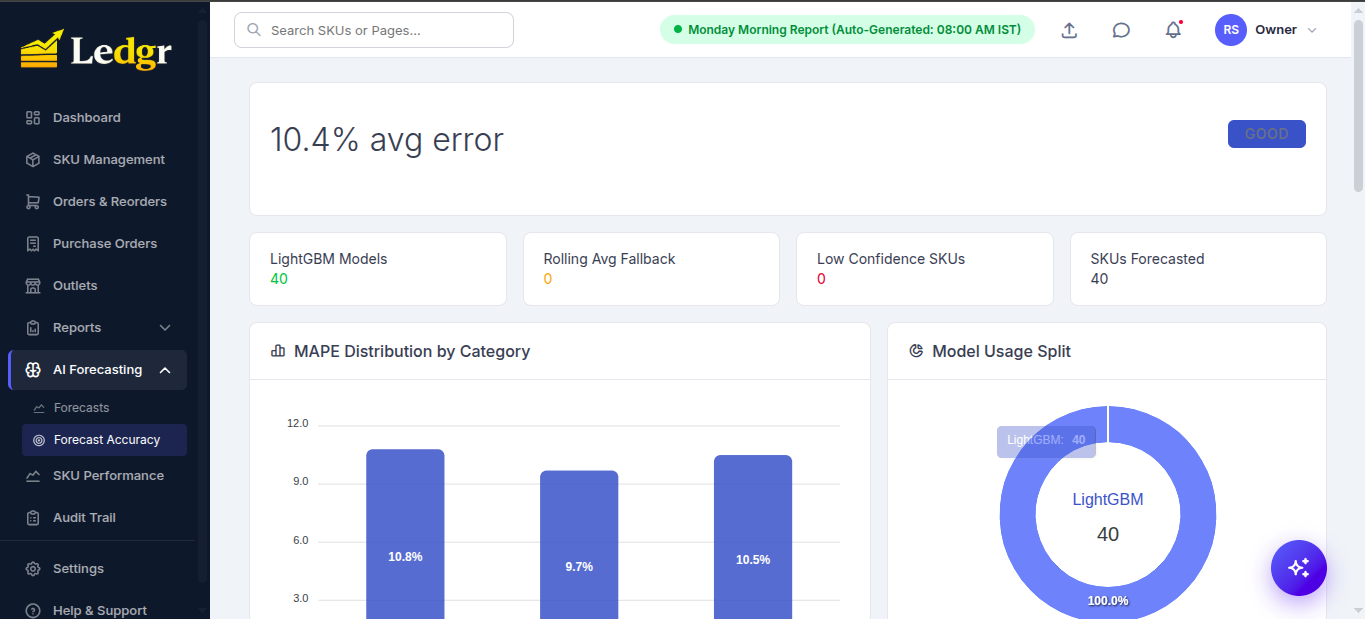

📐 MAPE — The Heart of Ledgr

MAPE (Mean Absolute Percentage Error) is the metric that makes the system economically intelligent. It directly translates forecast confidence into rupees of working capital.

Formula

mape = abs(actual - forecast) / max(actual, 1) * 100

For each SKU, the system stores the weekly contribution and reports the rolling 4-week average as that SKU's headline MAPE. The overall system MAPE is the average across all SKUs.

How MAPE Becomes Inventory

Per-SKU MAPE	Safety Stock Buffer	Interpretation
< 10%	0.5 weeks	Forecast is sharp — minimal cushion
10 – 20%	1.0 week	Standard buffer
> 20%	2.0 weeks	Forecast is shaky — double buffer
no data yet	1.5 weeks	Default cautious

Multiplied by 1.5× during festive periods (Diwali, etc.) — festive demand is intrinsically harder to predict.

Worked Example

SKU-007 sells 100 units/week. Lead time 1 week, current stock 80, 6-week forecast = 600 units.

	MAPE = 8% (sharp)	MAPE = 25% (shaky)
Safety stock	100 × 0.5 = 50 units	100 × 2.0 = 200 units
Reorder qty	600 + 50 + 100 − 80 = 670	600 + 200 + 100 − 80 = 820

Same SKU, same demand — but you order 150 units more (~22%) purely because the model is less confident.

💡 The mental model: MAPE is the price of trust. As the model improves, working capital is freed automatically. The buyer isn't paying for forecasting — they're paying for an inventory policy that self-tightens as the model gets smarter.

For a deeper walk-through see PROJECT_REFERENCE.md §3–§4.

---

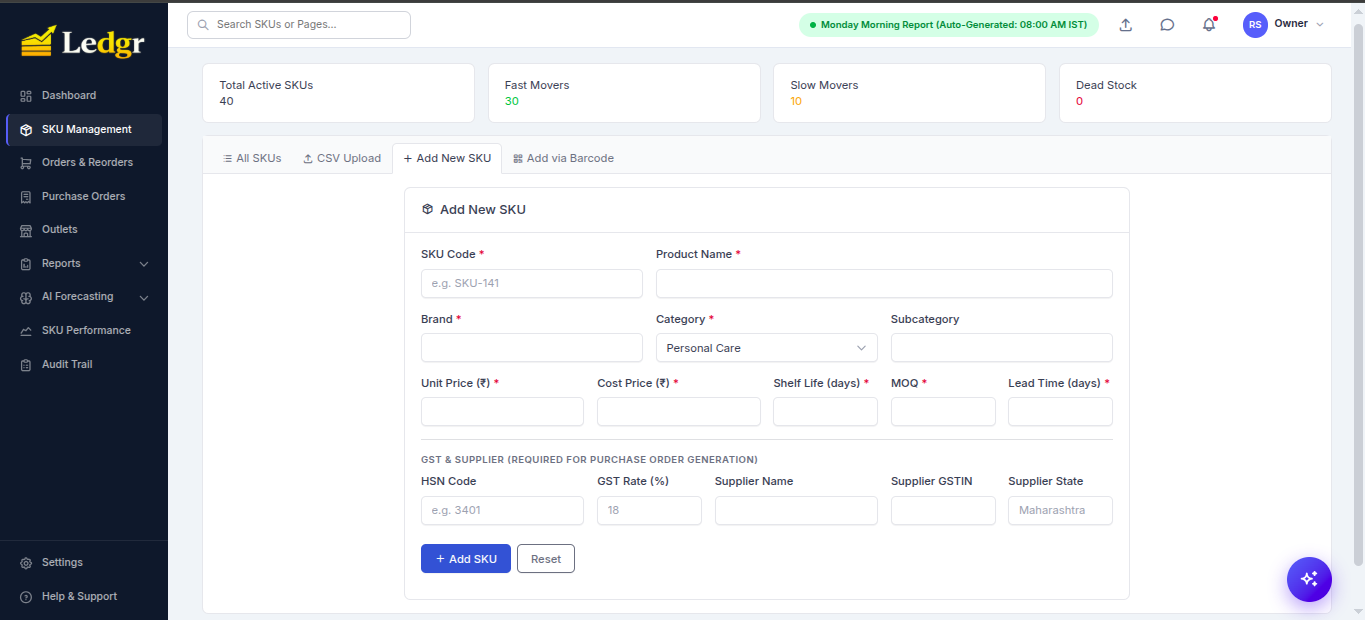

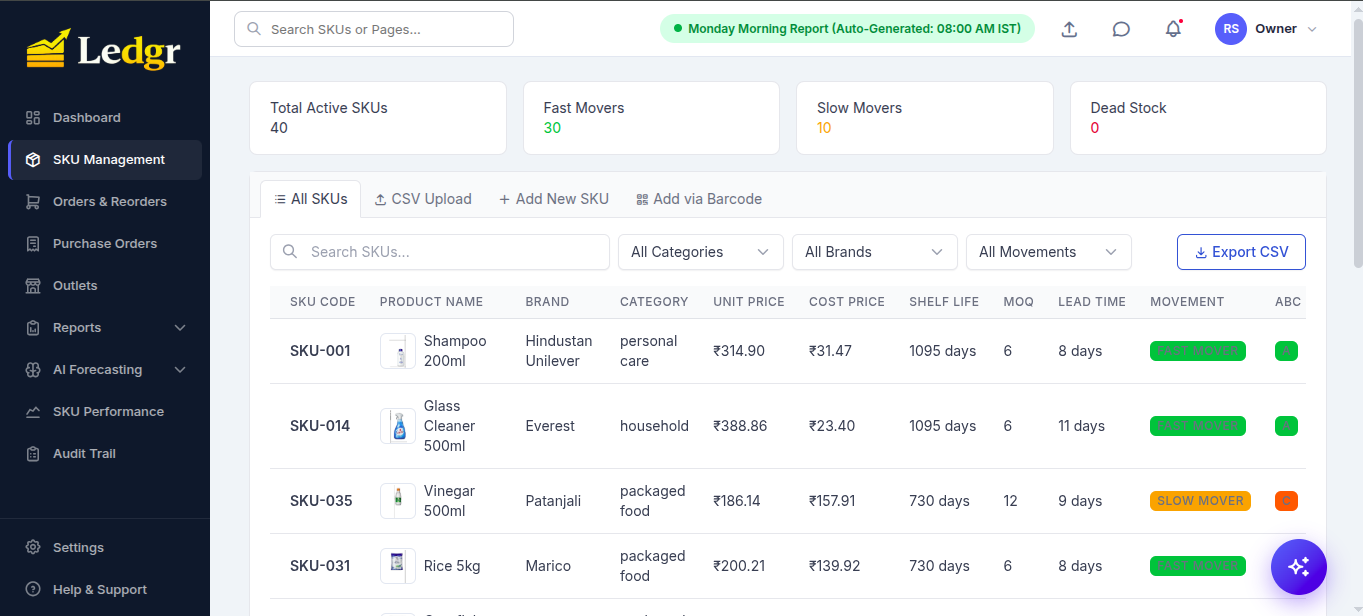

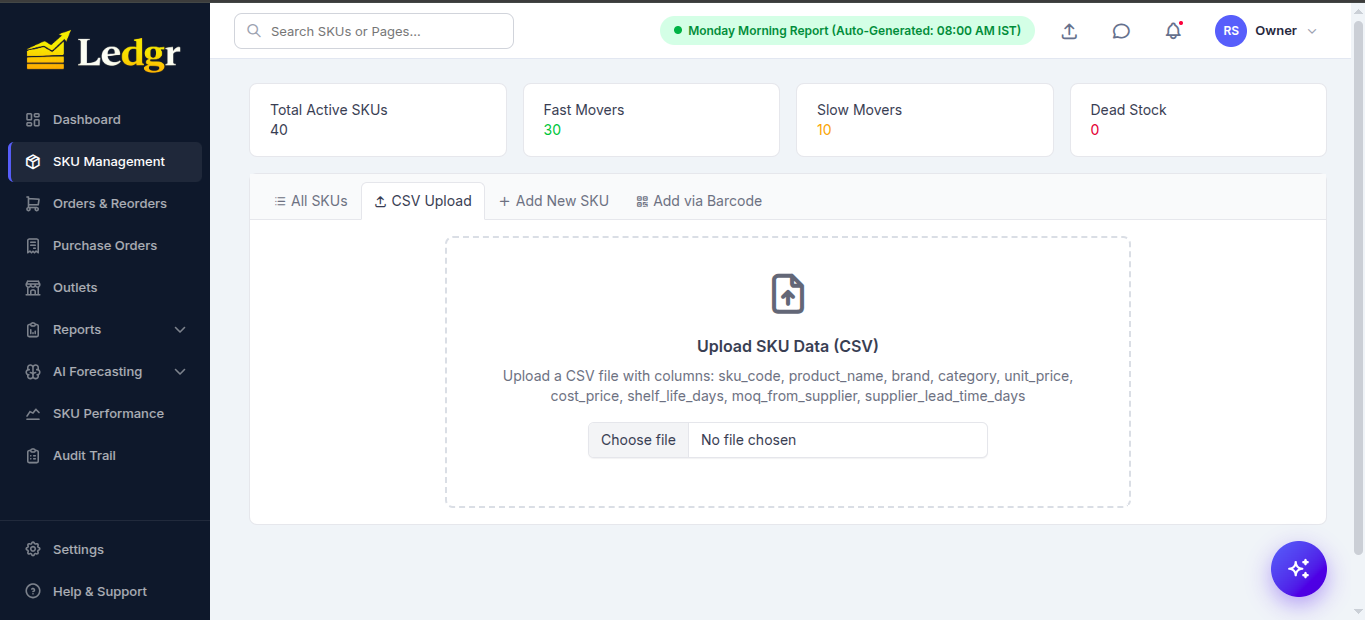

📦 SKU Management — The Master Catalog

40 demo SKUs ship pre-loaded with full master data: HSN, GST rate, supplier, lead time, MOQ, shelf life, brand, category, ABC class, and movement profile.

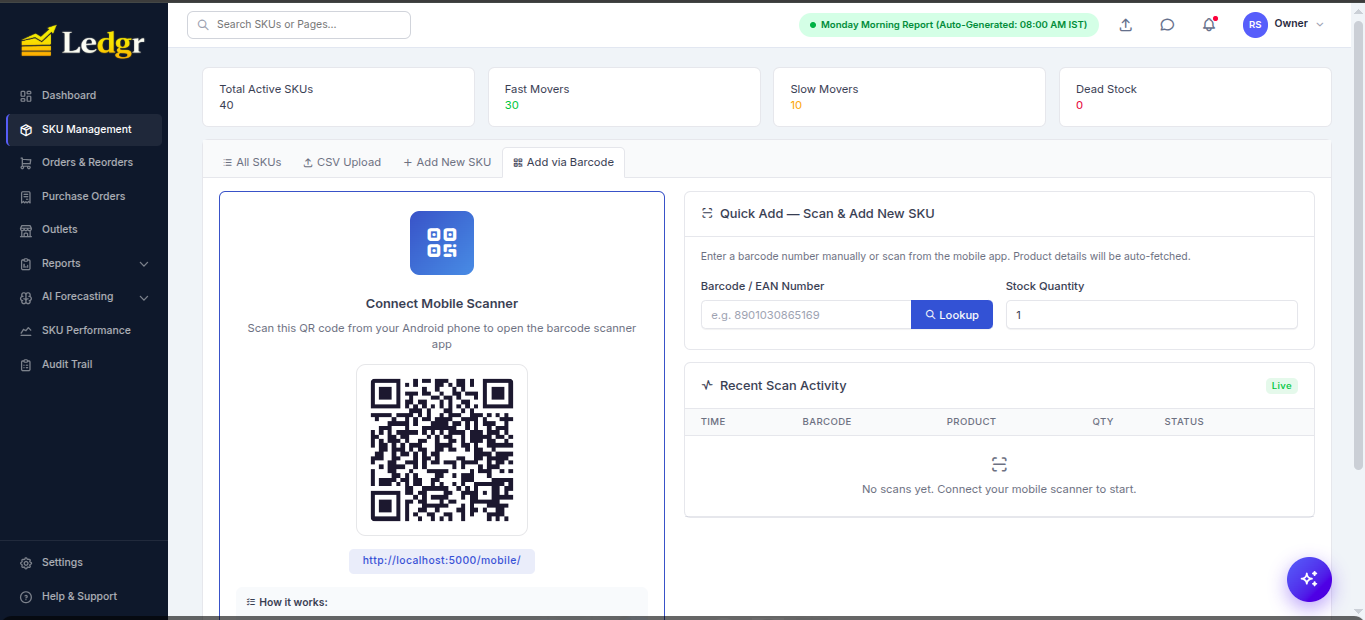

The salesman opens the Android app, scans the QR shown on the dashboard, and the phone is paired to the server. Subsequent retail-barcode scans (EAN / UPC / Code-128) sync to the dashboard's Recent Scan Activity stream live.

---

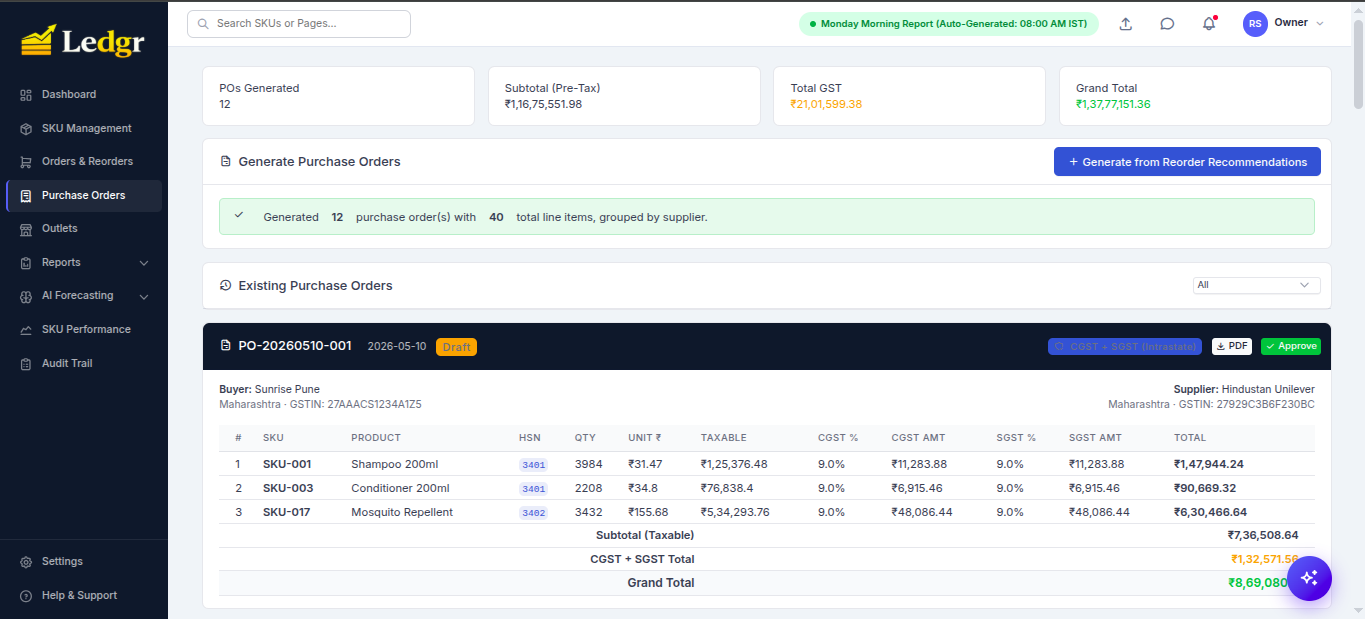

🛒 Reorder & GST-Compliant Purchase Orders

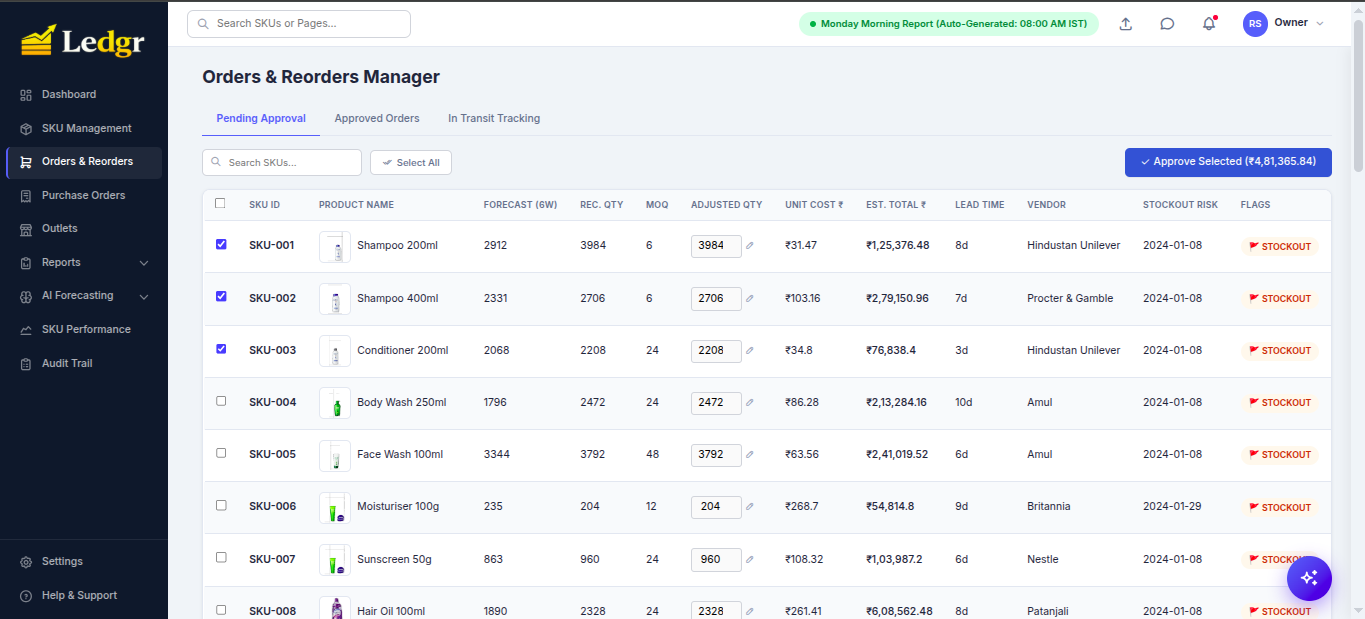

The reorder engine generates per-SKU recommendations that the owner can edit, multi-select, and approve in one click. Approved orders get grouped by supplier and emitted as GST-compliant POs — automatically routing intrastate (CGST + SGST) vs interstate (IGST) based on the buyer/supplier state pair.

Every PO has:

• Auto-generated PO number (PO-YYYYMMDD-NNN)
• HSN codes per line item (read from the SKU master, no hardcoded 18%)
• Correct GST routing — CGST+SGST when buyer.state == supplier.state, IGST otherwise

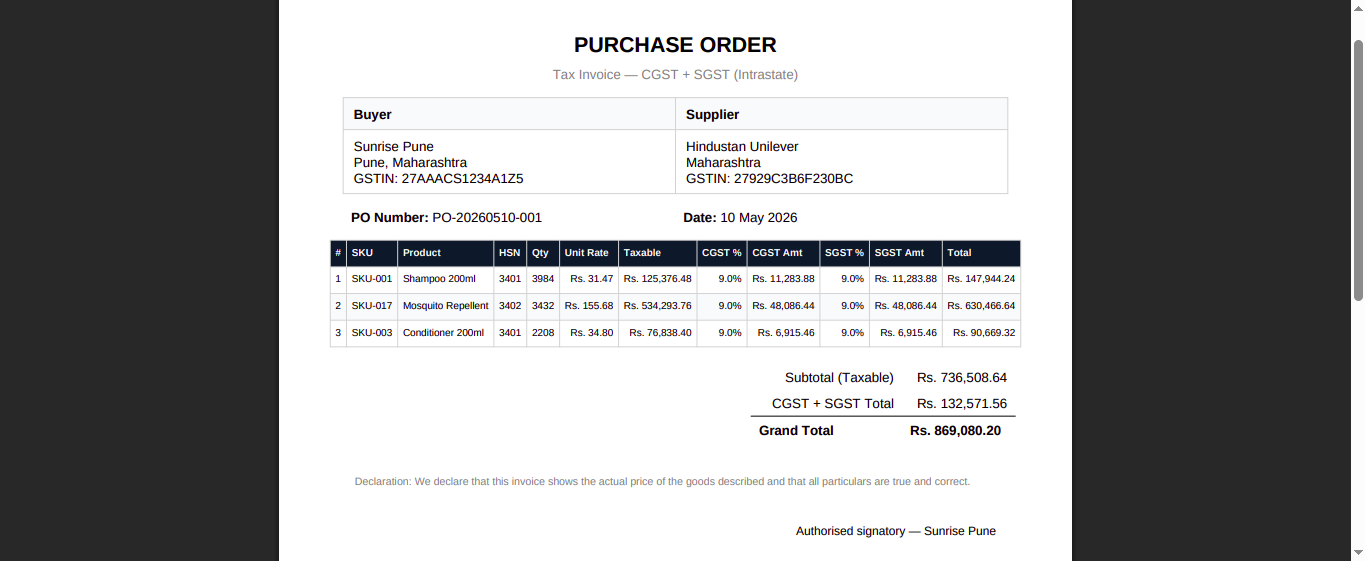

• PDF download in tax-invoice format with declaration + authorised-signatory line
• Audit-ready record persisted in the purchase_orders table

---

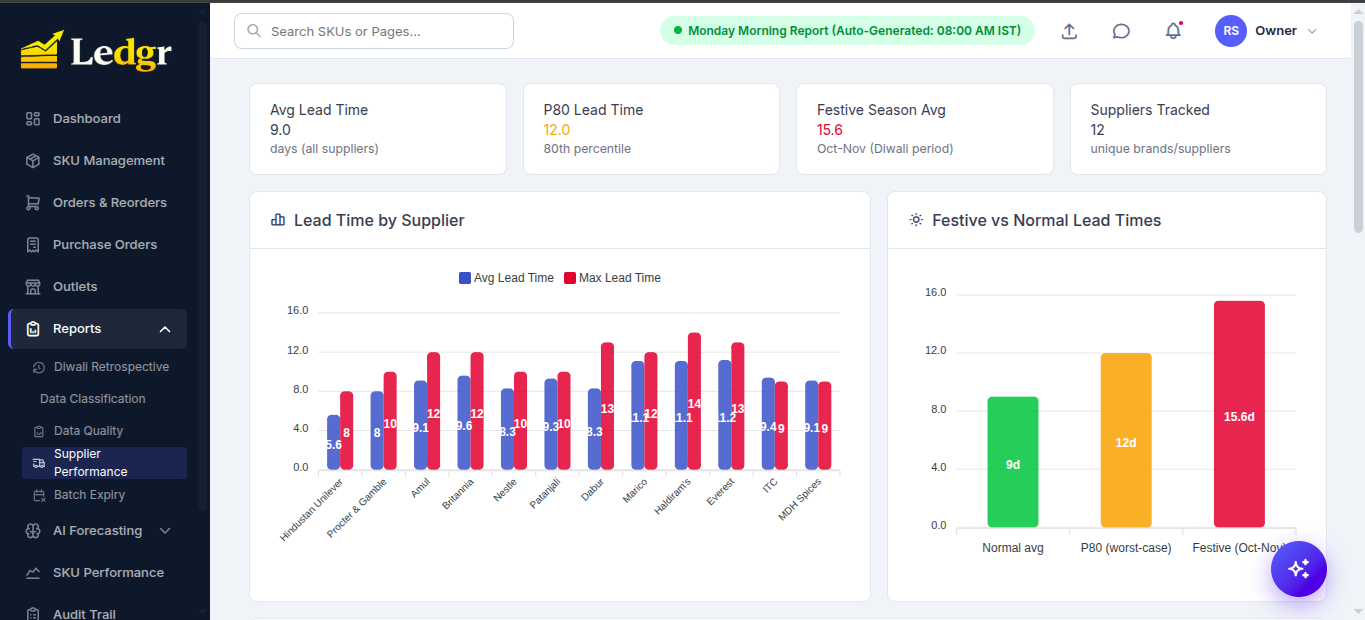

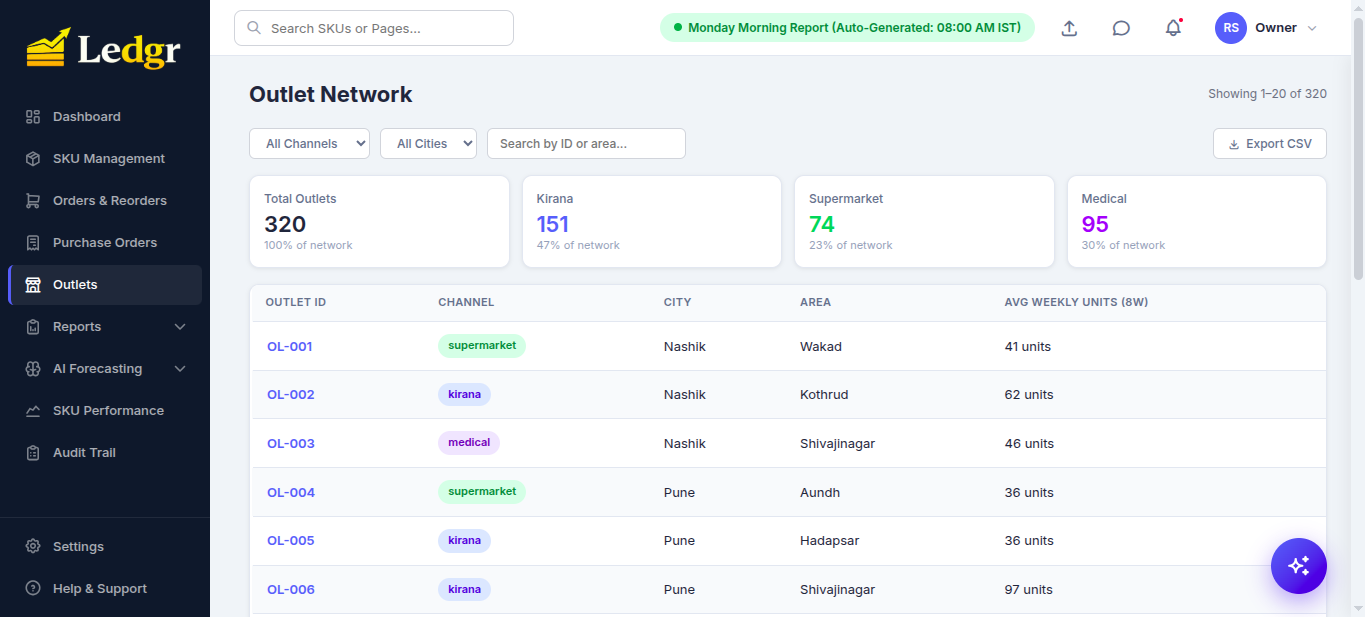

🏪 Outlet Network & Supplier Analytics

Channel-aware sales rollups, per-supplier lead-time variance, P80 worst-case days, and a festive multiplier (~1.3×) baked into Oct–Nov estimates so reorder timing accounts for Diwali-induced delays.

---

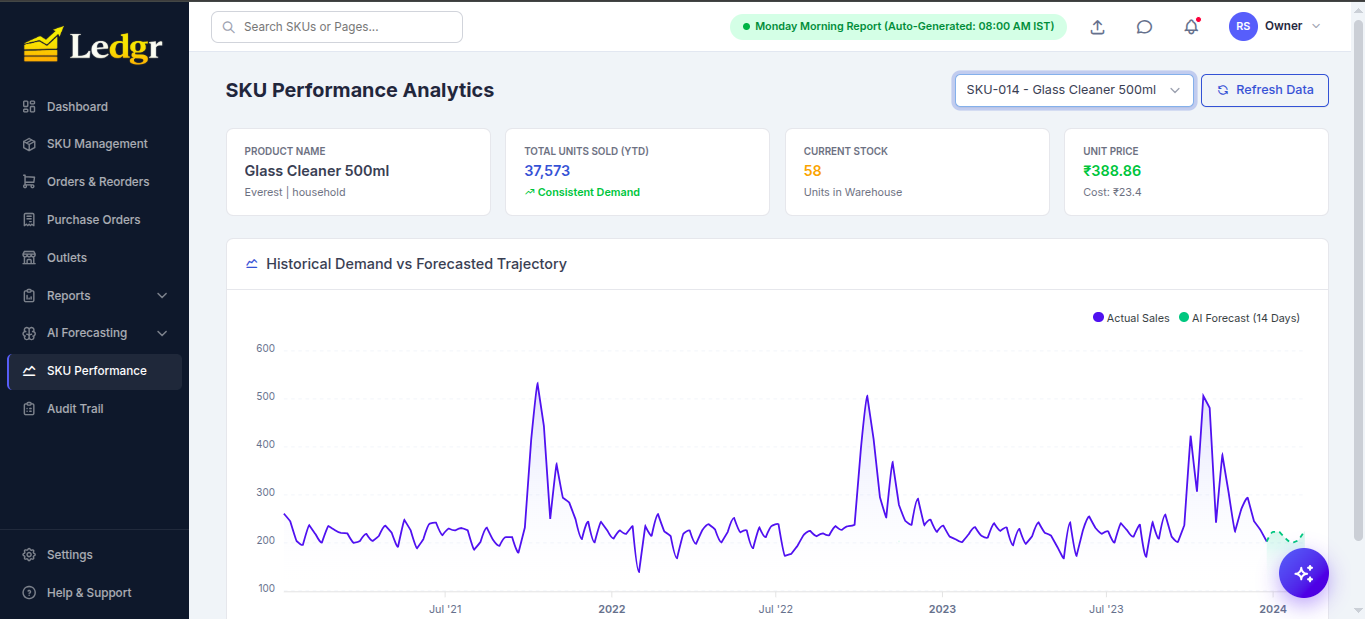

📊 SKU Performance Drill-Down

For any SKU you can see:

• Historical demand vs forecast — multi-year trajectory with the AI's 14-day forward forecast overlaid
• Movement label — Consistent / Seasonal / Volatile / Declining
• Stock-cover indicator — current weeks of cover
• Cost vs price — gross margin per unit

---

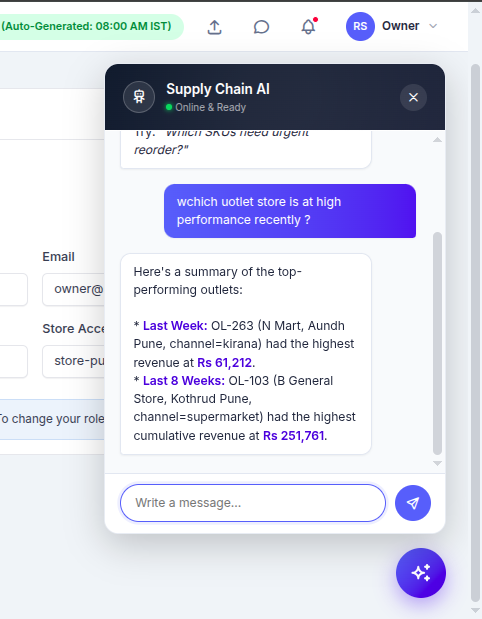

🤖 AI Chatbot — RAG Over Pipeline Outputs

The sparkles button at the bottom-right opens a chatbot grounded in the actual operational data of the system (not the LLM's memory).

How it works:

1. Every pipeline run rebuilds ~100 chunks from monday_report.json, forecast_accuracy.json, reorder_recommendations.csv, outlet/supplier/batch/PO/pipeline DB tables, etc.
2. TF-IDF + cosine similarity (sklearn — no 500 MB embedding model needed) ranks chunks against the user query.
3. Top-10 chunks + the executive summary are fed to Gemini 2.0 Flash (via OpenRouter) with a strict system prompt forbidding hallucination.
4. No API key? A deterministic keyword router still answers the dozen most-common questions from the same data files.

Try asking:

• "Which SKUs need urgent reorder?"
• "What's the best-performing outlet last week?"
• "Tell me about SKU-007"
• "How is our forecast accuracy?"
• "Show me the Diwali analysis"
• "Any overstock risk?"

---

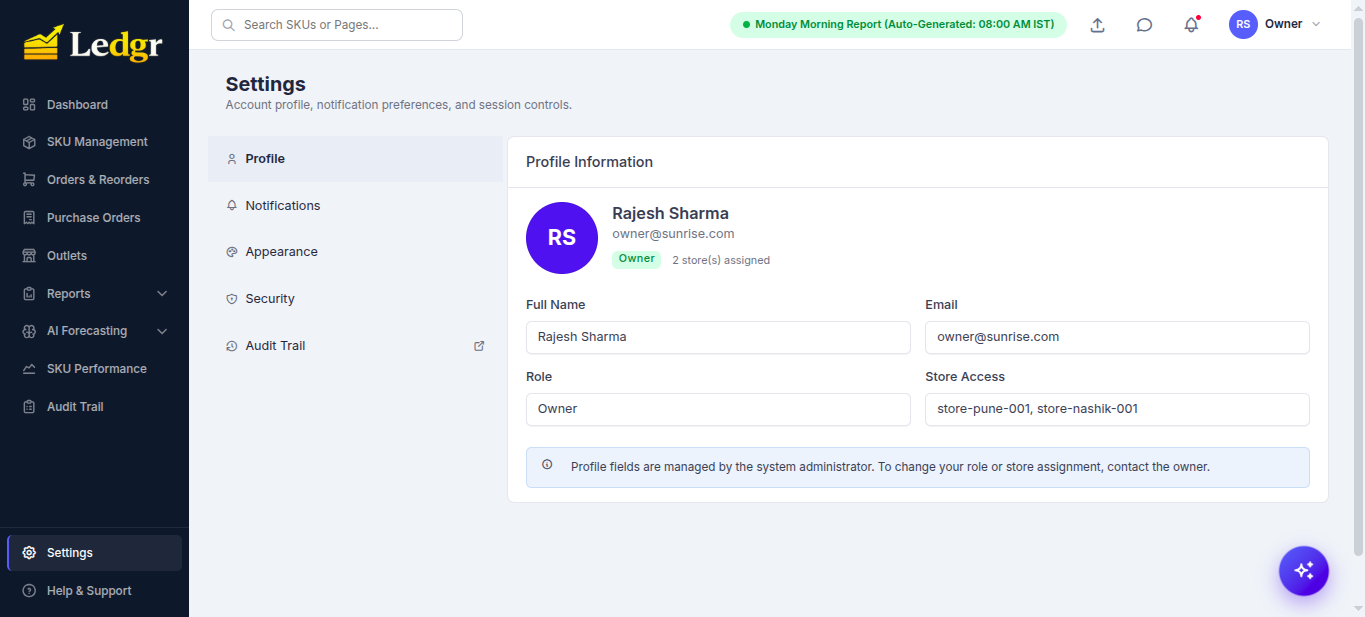

⚙️ Settings & Multi-Store Access

Each user is scoped to one or more stores (e.g. store-pune-001, store-nashik-001). All KPIs, reorder recs, and POs filter by the user's assigned stores. A salesman sees only their own outlet; a manager sees their region; an owner sees the whole network.

---

🛠️ Tech Stack

Layer	Technologies
Frontend	Tabler UI · ApexCharts · Vanilla JS
Backend	Python 3.12 · Flask 3.0 · Flask-Login · Flask-Mail · Gunicorn (2 workers)
Database	PostgreSQL 15 · SQLAlchemy 2.0 · psycopg2
ML / Forecasting	LightGBM 4.6 · scikit-learn (TF-IDF for RAG) · pandas · numpy
Scheduling	APScheduler 3.11 (Mon 7:45 AM IST cron)
AI Chatbot	Google Gemini 2.0 Flash via OpenRouter · TF-IDF retrieval
Android	Kotlin · Jetpack Compose · CameraX + ML Kit · Room (offline queue)
DevOps	Docker · Docker Compose · Bash + PowerShell launchers
Notifications	Twilio (WhatsApp) · Flask-Mail (SMTP) · Telegram Bot API

---

📂 Project Structure

Ledgr-Retail-SKU-Management-Tool/
├── app.py                          # Flask routes, /api/chat, role guards
├── auth.py                         # Demo accounts, role-required decorator
├── database.py                     # SQLAlchemy models init, MAPE rollups, seeding
├── models.py                       # SKU, Outlet, Batch, PO, ForecastAccuracyLog
├── rag.py                          # TF-IDF chunk builder + retriever
├── notifications.py                # WhatsApp / Email / Telegram fan-out
├── scheduler.py                    # APScheduler weekly cron worker
├── backend/
│   ├── 1_clean_data.py             # Step 1: data classification
│   ├── 2_forecast.py               # Step 2: LightGBM 6-week forecast
│   ├── 3_retrospective.py          # Step 3: Diwali 2023 backtest
│   ├── 4_reorder_engine.py         # Step 4: MAPE-driven reorder
│   ├── 5_sku_classifier.py         # Step 5: movement + ABC
│   └── 6_report_generator.py       # Step 6: monday_report.json
├── templates/                      # Jinja2 + Tabler dashboards
│   ├── overview.html               # Dashboard with KPI tiles
│   ├── forecast.html               # AI Forecasting page
│   ├── accuracy.html               # MAPE deep-dive
│   ├── reorder.html                # Approval queue
│   ├── purchase_orders.html        # GST POs
│   ├── outlets.html                # Outlet network
│   ├── sku_management.html         # SKU master CRUD
│   └── base.html                   # Sidebar + chatbot widget
├── android/                        # Kotlin scanner app
│   └── app/build/outputs/apk/debug/app-debug.apk
├── data/
│   ├── sku_master.csv              # 40 SKUs
│   ├── outlet_master.csv           # 320 outlets
│   ├── sales_history.csv           # 3 years × ~93K rows
│   └── processed/                  # Pipeline outputs (gitignored)
├── scripts/
│   └── log_weekly_actuals.py       # Cron job — writes forecast_accuracy_log
├── Screenshot/                     # README assets
├── docker-compose.yml              # web + db + scheduler
├── Dockerfile                      # Python 3.12-slim, gunicorn -w 2
├── run.sh / run.ps1                # One-shot launchers
├── SETUP.md                        # 10-section handoff guide
├── PROJECT_REFERENCE.md            # MAPE deep-dive + enterprise audit
└── README.md

---

🌐 API Reference (selected)

Method	Endpoint	Purpose
POST	/auth/login	Authenticate user, set session cookie
GET	/api/dashboard-summary	Exec summary, pipeline status, alerts in one shot
GET	/api/sku-list	All SKUs scoped to user's stores
GET	/api/forecasts	6-week forecast per SKU
GET	/api/forecast-accuracy	Rolling 4-week MAPE per SKU + overall
GET	/api/reorder-recommendations	Engine output with reasoning
POST	/api/orders/approve	Approve selected reorder rows → POs
GET	/api/orders/list	Approved + draft POs
POST	/api/generate-po	Group approved orders by supplier, emit GST-routed POs
GET	/api/po/<po_number>/pdf	Tax-invoice PDF
GET	/api/outlet-performance	Top/bottom outlets, channel rollups
GET	/api/supplier-performance	Lead time, P80, festive estimates
GET	/api/batch-expiry	Critical / warning / healthy batches
POST	/api/run-pipeline	Re-run the 6-step pipeline (owner only)
POST	/api/chat	RAG-grounded chatbot reply
POST	/api/scan	Android scanner ingestion

---

📊 What You Get Out of the Box

After step 3 of Quick Start, the dashboard is already populated with:

• 40 SKUs with full master data (HSN, GST, supplier, lead time, MOQ, shelf life)
• 320 outlets across Pune & Nashik (Kirana, Supermarket, Medical)
• 3 years of weekly sales history (~93 K observed rows, ~2 M-row reconstructed grid)
• 103 inventory batches (29 critical / <14 days to expiry)
• 6-week LightGBM forecast + 10.4% overall MAPE
• Diwali 2023 retrospective (10/14 known stockouts identified)
• 12 pre-generated POs in draft status, totaling ₹1.37 Cr
• Monday morning report ready to read or trigger

You can start clicking immediately. No data import needed.

---

🗺️ Roadmap

Pre-Production Hardening

• Fix DB connection pooling — pool_pre_ping + post_fork engine dispose to eliminate psycopg2 lost synchronization errors under gunicorn workers
• Replace hardcoded store_id='store-pune-001' in PO creation with the user's primary store
• Bump Dockerfile healthcheck start_period to 400s so first-boot doesn't false-fail
• Migrate demo accounts from hardcoded auth.py dict to the users table; add forced password rotation
• Add Alembic migrations to replace ad-hoc ALTER TABLE calls
• Add audit log for PO approve / SKU delete / inventory adjust
• Add rate limiting (Flask-Limiter) on /auth/login, /api/run-pipeline, /api/chat

Product Roadmap

• Sales-weighted MAPE (wMAPE) as an option alongside unweighted average
• Multi-tenant onboarding API — separate chains, isolated SKU + outlet masters
• Hourly forecast cadence for high-velocity SKUs (current cadence: weekly)
• Embedding-based retrieval in RAG — replace TF-IDF with text-embedding-3-small for semantic recall
• iOS scanner app (Swift + VisionKit barcode)
• Predictive shelf-life optimization — recommend price-down promos for batches approaching expiry
• HTTPS enforcement + nginx reverse proxy template + cleartext-disabled APK build

See PROJECT_REFERENCE.md §6 for the full enterprise-readiness audit with severity tags.

---

🚧 Going to Production

The defaults are tuned for local demo. Before deploying for real users:

1. Replace FLASK_SECRET_KEY in .env with python -c "import secrets; print(secrets.token_urlsafe(48))"
2. Set FLASK_ENV=production (the app refuses to start under prod with the dev secret)
3. Set HIDE_DEMO_CREDENTIALS=1 to remove the demo-account block on the login page
4. Migrate DEMO_USERS out of auth.py into the real users table
5. Set OPENROUTER_KEY for live LLM chat
6. Set LEDGR_PUBLIC_HOST to the externally-routable hostname
7. Front Gunicorn with nginx + a real TLS cert; flip usesCleartextTraffic=false in the Android manifest and rebuild
8. Configure WhatsApp (Twilio) / Email (Flask-Mail) / Telegram for Monday-morning notifications

Full handoff details in SETUP.md §8.

---

🧪 Common Operations

Goal	Command
Start in foreground (see logs)	./run.sh
Start in background	./run.sh -d
Stop	docker compose down
Reset everything (drops Postgres + pipeline outputs)	docker compose down -v
Stream web logs	docker compose logs -f web
Stream scheduler logs	docker compose logs -f scheduler
Re-run the pipeline	Owner → SKU Management → top-right "Run Pipeline" button
Open a Postgres shell	docker compose exec db psql -U ledgr -d ledgr
Update to a newer commit	git pull && docker compose up -d --build

---

⚠️ Disclaimer

This system was built initially as a hackathon project and is being commercialized. The shipped demo accounts and seed data are for evaluation only. Before deploying for real-world commercial use, complete the Pre-Production Hardening checklist above. See PROJECT_REFERENCE.md §6 for the full enterprise-readiness audit.

---

🤝 Contributing

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

Issues and feature requests welcome at https://github.com/HoneyBadger-010/Ledgr-Retail-SKU-Management-Tool/issues.

---

📄 License

Released under the MIT License — see LICENSE for details.

---

⭐ Acknowledgements

• Microsoft Research for LightGBM
• Tabler for the dashboard UI kit
• Google ML Kit for the on-device barcode recognizer
• OpenRouter for unified LLM API access
• scikit-learn for the lightweight TF-IDF retrieval that replaced a 500 MB embedding stack

---
